規格及零件說明
| 型號
/ 項目 |
體積
(高x直徑) |
貯油器及基座材質 |
零件材質 |
O型環和墊片 |
操作溫度 (C) |
容量 (ml) |

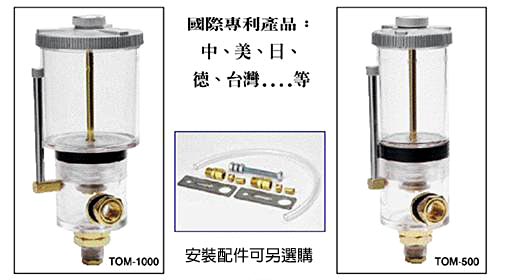

| TOM-1000 |
290mm X
ø122mm |
耐衝擊
聚酯碳酸 |
鋁合金青銅及不鏽鋼
|
NBR-70,80 DURO
(BUNA-N) |
-20°C~125°C |
1000ml |
| TOM-500 |
290mm X
ø91mm |
500ml |

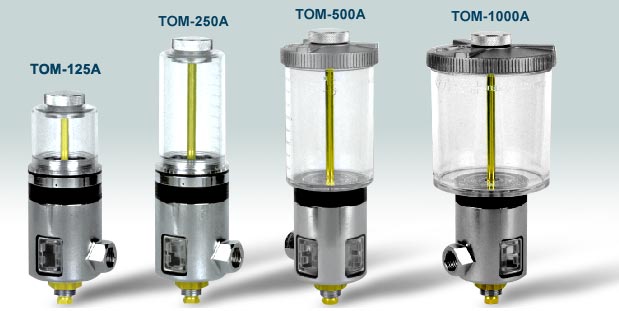

| TOM-125A |
220mm X ø82mm |
125(ml) |
|
TOM-250A |
250mm X ø82mm |
250(ml) |
|
TOM-500A |
260mm X ø91mm |
500(ml) |
|
TOM-1000A |
260mm X ø122mm |
1000(ml) |
|
|
 |
 |
 |
 |
 |
| U.S.A. PAT. NO. 5788013 |
TAIWAN PAT. NO. 118213 |
CHINA PAT. NO. ZL97 2 00445.9 |
GERMANY PAT. NO. 296 20 411.0 |
JAPAN PAT. NO. 3040272 |
|
|
