SPECIFICATION
Item # Dimension
(HxDia)/ mm

Reservoir/Base

Other
Components

 O-ring/Gasket Temperature
(C)		 Volume
(ml)

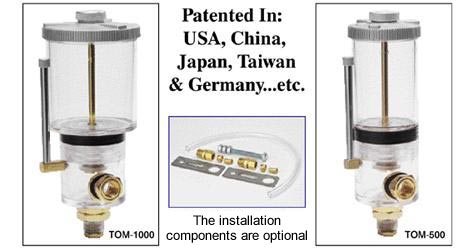

TOM-1000 290mm X ø122mm



High-impact
polycarbonate

　

Alum./Bronze
stainless steel

NBR-70,80 DURO
(BUNA-N)

-20°C~125°C

 1000ml
TOM-500 290mm X ø91mm 500ml
TOM-125A 220mm X ø82mm 125(ml)

TOM-250A

 250mm X ø82mm 250(ml)

TOM-500A

 260mm X ø91mm 500(ml)

TOM-1000A

 260mm X ø122mm 1000(ml)



OPEN POWER ENTERPRISE CO., LTD.
No. 57, Alley 20, Lane 399, Sec. 3, Chung Haw E. Road, Tainan Taiwan, R.O.C.
TEL:886-6-2699180   FAX:886-6-2881109
